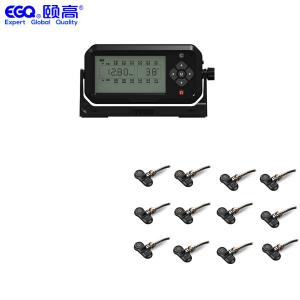

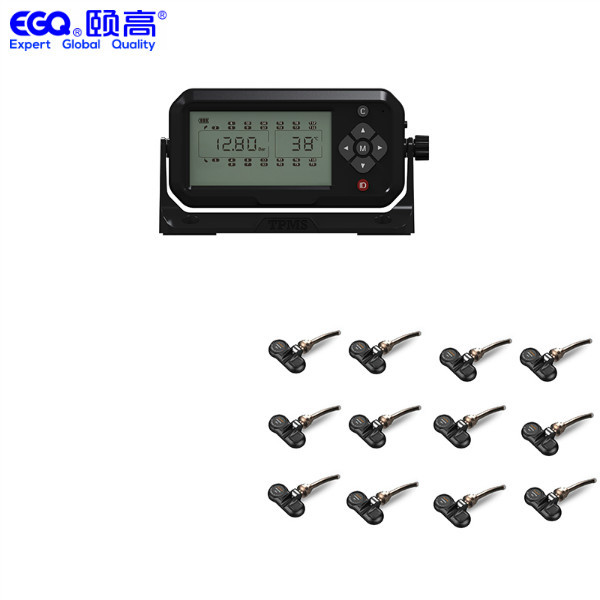

203 Psi Rechargeable 12 Tire Wireless TPMS Solutions

  • 1
  • 2

Brand Name : EGQ

Model Number : B12QZ0

Certification : CE,FCC,ROHS,IATF16949:2016

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 10000 sets per month

Delivery Time : 7-15 work days

Packaging Details : boxs

Display interface : LCD segment code (26 wheels with the same display)

Receiver port : Vehicle battery, ACC input and RS232 output

Machine weight (excluding valve) : 16g±1g

Pressure range : 0~203psi

Antenna sheet material : Phosphorus copper nickel plating

Power supply mode : Button Battery

Contact Now

203 Psi Rechargeable 12 Tire Wireless TPMS Solutions

Product parameters

Receiver(7 Wheels)
Display interface LCD segment code (26 wheels with the same display)
Receiver port Vehicle battery, ACC input and RS232 output
Machine weight (excluding packaging) 230g±5g
Abnormal self-recovery Toggle Switches(The switch is facing up, restart after disconnecting the external power supply.)
Working temperature -30~80℃
Power supply mode Internal rechargeable lithium battery and external power supply
Interface voltage Vehicle battery 24V, ACC24V
Internal battery voltage 3.5V-4.2V
Bright working current 12mA
Black working current (for data communication) 4.5mA
Reception sensitivity -95dbm
Dimensions 13.5cm(length)*6.5cm(width)*2.2cm(height)
Warranty within 1 years
Pressure range 0~203psi

Products Description

1. Fit for 2-26 tyre vehicle of DC 12V/24V

2. Tyre pressure sensor range : 0-14 Bar / 0-203 Psi

3. Tyre temperature high limit :125.C

4. switched to another vehicle easily

5. Flexible display placement on dashboard

6. Compact-size wireless display

7. Intelligent sleeping mode for power saving

8. use chips Freescale 87E, Japanese Maxell battery.

Sensor(Ordinary internal type sensor)
Plastic parts material Nylon + glass fiber
Shell temperature resistance -50℃~150℃
Antenna sheet material Phosphorus copper nickel plating
Machine weight (excluding valve) 16g±1g
Power supply mode Button Battery
battery model CR2050
battery capacity 345mAh
Working voltage 2.1V-3.6V
working temperature 8.7mA
Self-test current 2.2mA
Dormant current 0.5uA
Working temperature -40℃-125℃
Transmit frequency 433.92MHZ
Transmit power >-12dBm
Dimensions 5.3cm(length)*3.5cm(width)*1.4cm(height)(excluding valve)
Warranty Sensors Warranty Within 12 months after delivery day
Pressure range 0~203psi
Type Valve truck tpms

Product attention:

1 Operation is not suggested during driving.

2 Sensor monitors pressure and temperature of tire and signal to receiver, receiver reports pressure and temperature by number and voice. If there is any abnormal pressure or temperature, flashing warning icon and voice prompt will notice driver immediately. Drivers need to check and repair the tire immediately,in order to avoid risk of accident due to tire problem.

3 Tires have natural micro leakage phenomenon. It is a normal phenomenon that pressure of tire decreases over time. Pressure decreasing don't have directly relationship with install this products.

4 It is a normal phenomenon that pressure is unstable due to thermal expansion during driving. It don't have directly relationship with install this products.

5 Incorrectly installation will affect the use of this product or make damage. experienced technician is preferred to install this product. please be careful not to damage the sensor transmitter when disassembling tires again. Valve of internal sensor is not available for repeat assembling/disassembling.

6 Please use power cable provided by factory. It is not allowed to tie receiver by power cable, as I will

damage product or effect signal . And you will lose warranty.

7 Most of the DVD or other high power equipment in the market are all have electromagnetic interference. In order to avoid electromagnetic interference, receiver is suggest to install 50CM away from such kind of products. The best position is upper left corner, upper right corner of A column and middle of front seats (away from control).

8 There won't be notice if there is any change of products ( performance, specifications, warranty).

* This system send signal by wireless transmission, so it may not receive signal under some certain condition, like interference, error

operation or improper installation. If receiver can't receive signal for 10 minutes, please drive car away from current place ( maybe there is strong signal interference ) or go to authorized tire repair center to check is there any problem of sensor or battery of sensor is run out(battery life maybe shorter than normal use, as there is often abnormal condition occurs, sensor need to send signal to warn driver.)

Esteemed customer:

Thank you for buying our Tire pressure Monitoring System (TPMS). This system makes you more

safety when driving.It can real-time monitor tire pressure and temperature conditions.

If detected any abnormal pressure and temperature of tires, the system will transmit real-time voice alarm

and flash warning icon to remind the driver.

Real-time monitoring and warning can not only avoid risk of traffic accident but also make passenger safety.

In addition, this system can effectively help improve the vehicle comfortableness and driving

safety, reduce vehicle wear, save fuel consumption and avoid risk of flat tire.

Please read the instruction carefully before using this product. If there is any misunderstanding,please consult distributor or phone customer service, thanks!


Product Tags:

12 Tire Wireless TPMS



203 Psi Wireless TPMS



26 wheels Wireless TPMS


China 203 Psi Rechargeable 12 Tire Wireless TPMS Solutions wholesale

203 Psi Rechargeable 12 Tire Wireless TPMS Solutions Images
